LF 600 mB
Semi-automatic book block system which produces blocks from single folded sheets.

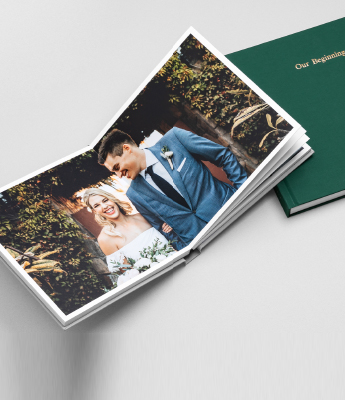

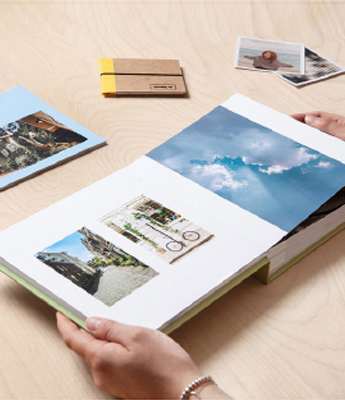

LF 600 mB is a semi-automatic book block system that produces Lay Flat book blocks from single folded sheets. It can make a photo book not only by gluing paper back to back but also by inserting cardboard between sheets.
Features
- Manual feeder for folded sheets and cardboard
- Easy to operate via touch screen
- Flexible production for different sizes 150 - 460 mm
- Lay Flat binding technology
- Hotmelt gluing technology
- Cheaper cost and faster delivery
- VIDEO1 VIDEO2
Download
Files:
TECHNICAL SPECIFICATION
PARAMETER
VALUE
Book block height
152 ‐ 460 mm
Book block width (open)
305 ‐ 915 mm
Maximum thickness of book block
50 mm
Cardboard
With or without
Thickness of cardboard
0.35 ‐ 1 mm
Thickness of paper
0.15 ‐ 0.3 mm
Glue
Hot melt
Speed
600 cycles /h
Power supply
220 V 50 Hz single phase
Maximum power consumption
2000 W
Machine dimension
1214 (L) x 800 (W) x 1160 mm (H)
Weight
350 kg
Air compressor
0.65 - 0.8 mPa 80 L/min
