LF 2000 All-In
High speed fully automatic book block system for book blocks from single sheets.

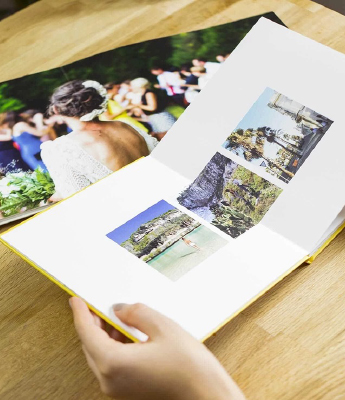

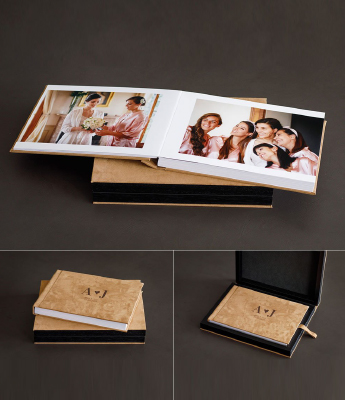

LF 2000 All-In is a high speed fully automatic book block system which produces Lay Flat book blocks from single sheets. It can make promotional books not only by gluing paper back-to-back but also by inserting cardboard between sheets. It is all in one station, creasing, folding and inline automatic book press are included, and it is designed for high-speed photobook production.
Features
- All in one system: integrated auto feeding, gluing, assembling units, and inline automatic book press
- High speed: 2000 cycles/hour
- Industrial grade: can run 24 hours per day, large volume paper and cardboard stacker
- Fully automatic: with bar code scanning system, doesn’t need operator intervention
- LayFlat binding technology
- Hotmelt gluing technology: cheaper cost and faster delivery
Download
Files:
TECHNICAL SPECIFICATION
PARAMETER
VALUE
Book block height
203 ‐ 330 mm
Book block width (open)
355 ‐ 750 mm
Max. thickness of book block
50 mm
Cardboard
With or without
Thickness of cardboard
0.35 ‐ 1 mm
Thickness of paper
0.15 ‐ 0.3 mm
Glue
Hotmelt
Speed
2000 cycles/h
Power supply
220 V 50 Hz single phase
Maximum power consumption
2700 W
Dimensions
2950 (L) x 1800 (W) x 1500 (H) mm
Weight
1500 kg
Air compressor
0.65 - 0.8 MPa 200 L/min
