Stripping Machine

The company Wenzhou Qian Ding Machinery Co. is a professional manufacturer of waste stripping machines. They provide the perfect solution for the die-cutting product waste removal by saving the labour cost and making the die-cut products in higher quality.

Their stripping machines are widely used for the production lines of box making, label making, paper cup making and other products that need to be die-cut.

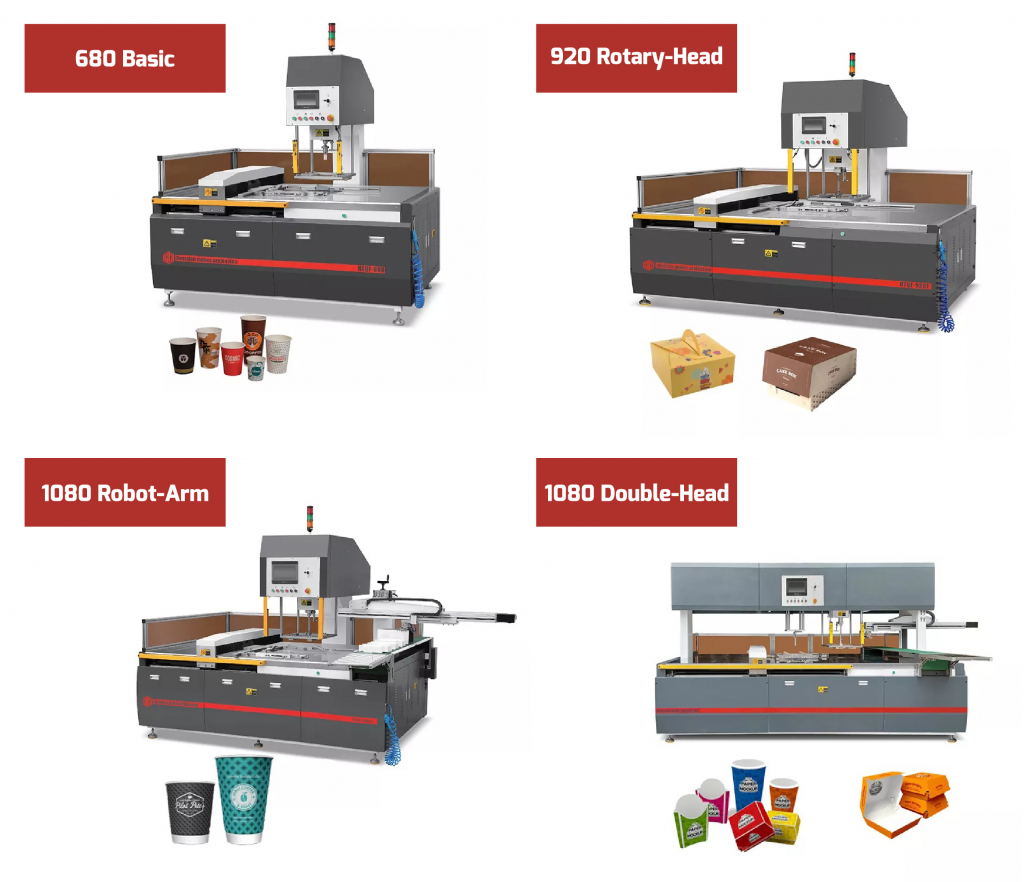

Size & Options

• Models for the following sheet size: 680 mm, 920 mm and 1080 mm
• The possible options include: Rotary head, Robot arm with a conveyor, Double head system

HTQF-680

• Max sheet size: 680 x 480 mm
• Max single product to take out: 420 x 420 mm
• Min single product to take out: 30 x 30 mm
• Paper pile height: 40 - 100 mm

HTQF-920

• Max sheet size: 920 x 680 mm
• Max single product to take out: 420 x 420 mm
• Min single product to take out: 30 x 30 mm
• Paper pile height: 40 - 100 mm

HTQF-1080

• Max sheet size: 1080 x 780 mm
• Max single product to take out: 450 x 450 mm
• Min single product to take out: 30 x 30 mm
• Paper pile height: 40 - 100 mm
