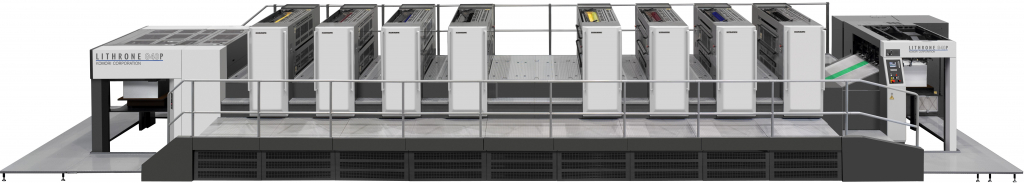

LITHRONE G40P ADVANCE
40-inch Convertible Perfecting Offset Printing Press
- Perfecting Mechanism - Unique high-performance perfecting mechanism configured by three double-size cylinders
- High performance - The Lithrone G40P advance enables high-quality two-sided printing in one pass and straight multicolor printing in one machine
- High speed - Two-sided printing at 15,000 sheets per hour
- World Class ROI
- Connected Automation by Komori's Smart Factory
Features
- Enables high-quality two-sided printing in one pass and straight multicolor printing in one machine.

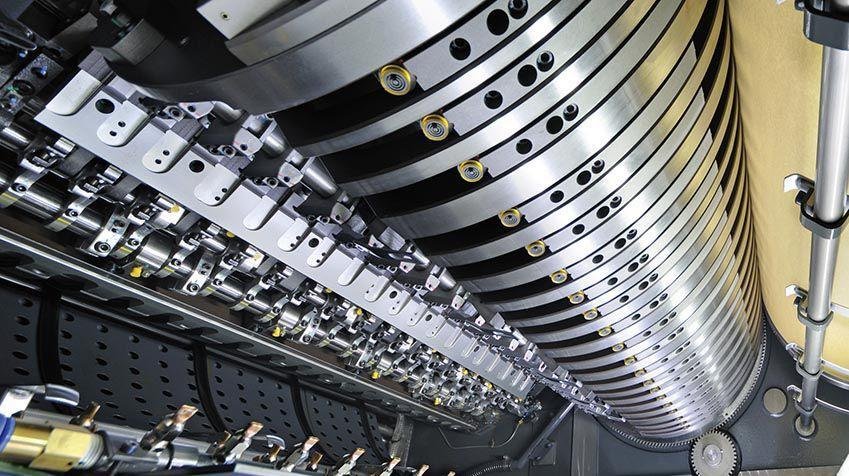

- Equipped with Komori’s own high-performance perfecting mechanism configured by three double-size cylinders. Komori's unique sheet transport system enabled by the stress-free sheet transfer and lower unit air control allows two-sided printing at 15,000 sheets per hour.
- Equipped with the Asynchronous Automatic Plate Changer (A-APC)* for significantly shorter makeready times. Furthermore, the Lithrone G40P advance is also equipped with the H-UV/H-UV L (LED)* system, which enables fast print drying and short turnarounds.
- Superb performance with heavy stock in either single-sided or double-sided printing mode means that a variety of stunning high added value printing effects can be obtained with special inks and overprint varnish. The Lithrone G40P advance is a machine of matchless flexibility that addresses a variety of needs at the highest level.
Lithrone G40P advance (40-inch Convertible Perfecting Offset Printing Press
Model
GL-440P-A
Max printing speed (sph)
15000
Max sheet size (mm)
720 x 1030
Max printing area (mm)
710 x 1020 (single-sided) 700 x 1,020 (double-sided)
Sheet thickness (mm)
0.04 ~ 0.3 / 0.06 ~ 0.6
Plate size (mm)
800 x 1030
Length (mm)
13854
Width (mm)
3790 (5530 with blower cabinet)
Height (mm)
2453 (2934 with safety covers open)
Model
GL-540P-A
Max printing speed (sph)
15000
Max sheet size (mm)
720 x 1030
Max printing area (mm)
710 x 1020 (single-sided) 700 x 1,020 (double-sided)
Sheet thickness (mm)
0.04 ~ 0.3 / 0.06 ~ 0.6
Plate size (mm)
800 x 1030
Length (mm)
15032
Width (mm)
3790 (5530 with blower cabinet)
Height (mm)
2453 (2934 with safety covers open)
Model
GL-640P-A
Max printing speed (sph)
15000
Max sheet size (mm)
720 x 1030
Max printing area (mm)
710 x 1020 (single-sided) 700 x 1,020 (double-sided)
Sheet thickness (mm)
0.04 ~ 0.3 / 0.06 ~ 0.6
Plate size (mm)
800 x 1030
Length (mm)
16210
Width (mm)
3790 (5530 with blower cabinet)
Height (mm)
2453 (2934 with safety covers open)
Model
GL-740P-A
Max printing speed (sph)
15000
Max sheet size (mm)
720 x 1030
Max printing area (mm)
710 x 1020 (single-sided) 700 x 1,020 (double-sided)
Sheet thickness (mm)
0.04 ~ 0.3 / 0.06 ~ 0.6
Plate size (mm)
800 x 1030
Length (mm)
17,388
Width (mm)
3940 (5530 with blower cabinet)
Height (mm)
2453 (2934 with safety covers open)
Model
GL840P-A
Max printing speed (sph)
15000
Max sheet size (mm)
720 x 1030
Max printing area (mm)
710 x 1020 (single-sided) 700 x 1,020 (double-sided)
Sheet thickness (mm)
0.04 ~ 0.3 / 0.06 ~ 0.6
Plate size (mm)
800 x 1030
Length (mm)
18566
Width (mm)
3940 (5530 with blower cabinet)
Height (mm)
2453 (2934 with safety covers open)
Model
GL-1040P-A
Max printing speed (sph)
13000
Max sheet size (mm)
720 x 1030
Max printing area (mm)
710 x 1020 (single-sided) 700 x 1,020 (double-sided)
Sheet thickness (mm)
0.04 ~ 0.3 / 0.06 ~ 0.6
Plate size (mm)
800 x 1030
Length (mm)
20922
Width (mm)
3940 (5530 with blower cabinet)
Height (mm)
2453 (2934 with safety covers open)
