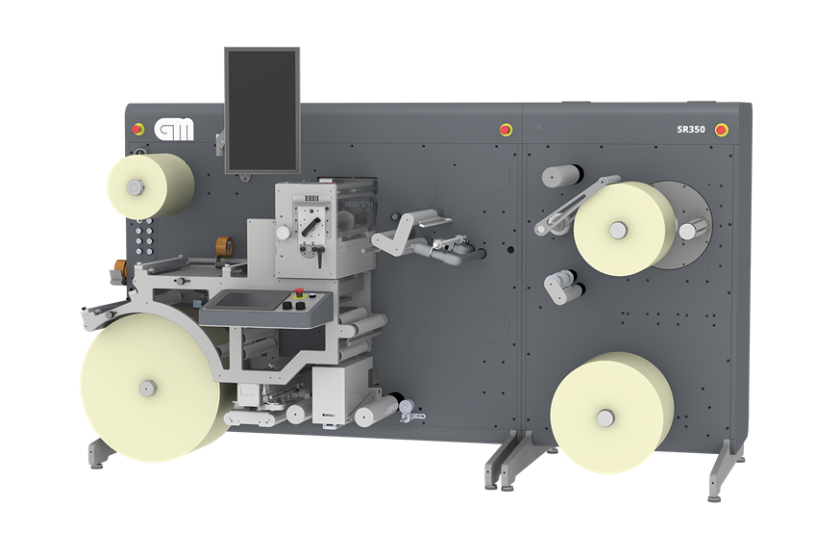

SR350 - Slitter Rewinder with Inspection

• The NEW completely redesigned SR350
• Up to 300m/min
• The shortest start/stop distance on the market
• 100% inspection
• Seated operator work position
• Semi-Automatic Turret

CHARACTERISTICS

The NEW SR350 is a highly reliable, high-speed slitter inspection rewind machine.  The SR350 features the newest in servo motion technology and a unique option for auto-set knives.  Designed for a wide range of SA labels on paper and plastic liners including the UPM PP30 and AD PET 23µm liners, booklet, tube laminate, Alufoil, Tyvek, cardboard, multilaminate.

Open concept, easy upgrade and quick set-up

Fully modular open concept allows to add the options such as 100% inspection camera, scanner bar code reader, ink-jet systems, register die-cutters, automatic slitting unit, waste vacuum ejector and turret rewinder.

Quick set-up routines with the build in job-recall system ensure all systems are ready to run simultaneously, making it faster to change jobs.

HIGHLIGHTS

• High speed up to 300m/min for efficient converting
• Automatic slitting available
• Code for laser & slitting – possibility to combine two machines working together thanks to using the same barcodes. The knives are set automatically utilizing information from barcodes.
• Advanced Nikka M1 label inspection system option, the machine stops precisely within 10cm if detect any error
• High speed up to 200m/min in full inspection mode with Camera Inspection
• Full rotary Die Cut option for white labels
• Length slitting station with 3x knifes either (Shear / Razor / Crush)
• Seated operator work position
• Domino inkjet printing option for codes producing
• Upgrade possible – more options available
• Easy web access and maintenance

SR350 CHARACTERISTICS

• Web width 350mm
• Servo drive
• Speed 300 m/min
• Unwind diameter 700mm; 3" pneumatic shafts, quick-change shafts for other sizes
• Splice table with a milled slot to support accurate cuts
• BST ultrasonic web guide
• 4 different slitting systems available
• Rewind diameter up to 500mm, depending on the configuration. Quick change spindles.
• Touch screen operation
• Build-in label counter & meter counter
• Graphical touch screen with web up diagram, label counter, meter counter, alarms, debug/fault information and remote internet hook up – in local language
